PoE Switches for CCTV — 4, 8, 16 & 24 Port
Made-in-India NEXELTRON PoE switches power and connect your IP cameras over one LAN cable. Every model has PoE Watchdog auto-reboot, a heavy-duty power supply, 250 m Extend mode, 2KV surge protection and a 1-year warranty with next-day replacement.

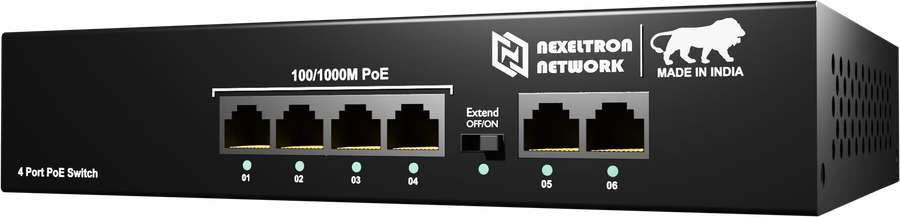

4 Port Fast Ethernet PoE Switch
4 Port Gigabit PoE Switch with AI Mode
4 Port Gigabit PoE Switch + 1 SFP

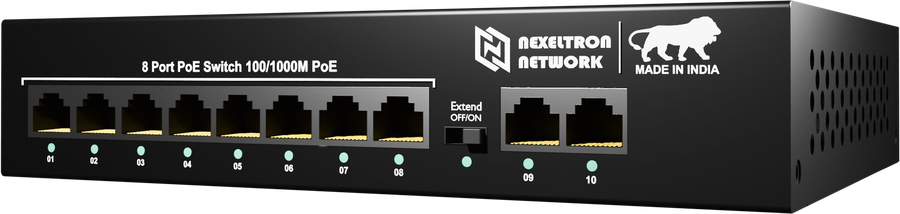

8 Port Fast Ethernet PoE Switch
8 Port Gigabit PoE Switch

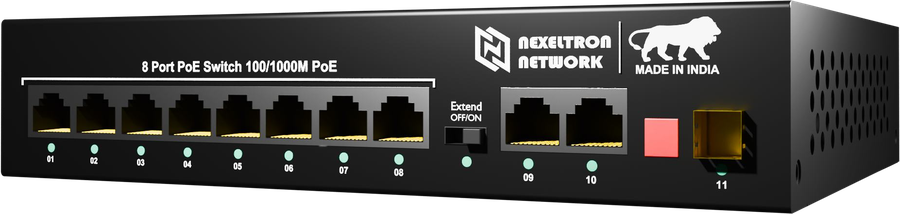

8 Port Gigabit PoE Switch + 1 SFP

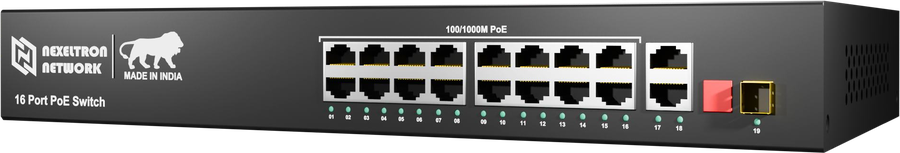

16 Port Fast Ethernet PoE Switch + 1 SFP

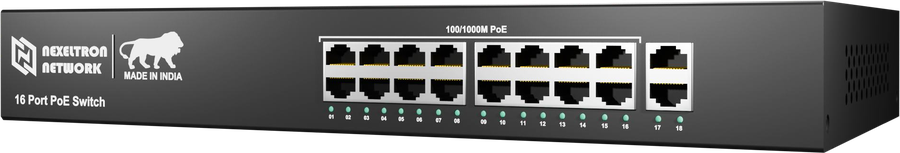

16 Port Gigabit PoE Switch

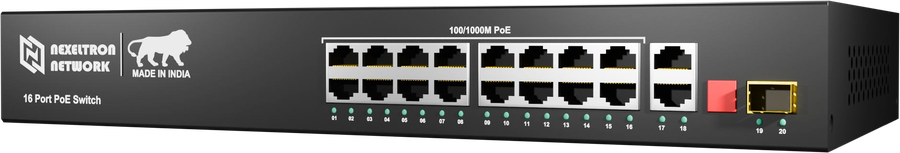

16 Port Gigabit PoE Switch + 2 SFP
24 Port Fast Ethernet PoE Switch + 2 SFP
PoE switch price list
| Model | PoE ports | Port speed | SFP | PoE budget | MRP (incl. GST) |
|---|---|---|---|---|---|
| 4 Port Fast Ethernet PoE Switch 4FE PoE + 2FE Uplink · NX-SW-001 | 4 | Fast Ethernet | — | 65 W | ₹2,299 |
| 4 Port Gigabit PoE Switch with AI Mode 4Gb PoE + 2Gb Uplink + AI · NX-SW-002 | 4 | Gigabit | — | 65 W | ₹2,999 |
| 4 Port Gigabit PoE Switch + 1 SFP 4Gb PoE + 2Gb Uplink + 1 SFP · NX-SW-003 | 4 | Gigabit | 1 | 65 W | ₹3,599 |
| 8 Port Fast Ethernet PoE Switch 8FE PoE + 2Gb Uplink · NX-SW-004 | 8 | Fast Ethernet | — | 120 W | ₹4,999 |
| 8 Port Gigabit PoE Switch 8Gb PoE + 2Gb Uplink · NX-SW-005 | 8 | Gigabit | — | 120 W | ₹5,699 |
| 8 Port Gigabit PoE Switch + 1 SFP 8Gb PoE + 2Gb Uplink + 1 SFP · NX-SW-006 | 8 | Gigabit | 1 | 150 W | ₹6,599 |
| 16 Port Fast Ethernet PoE Switch + 1 SFP 16FE PoE + 2Gb Uplink + 1 SFP · NX-SW-007 | 16 | Fast Ethernet | 1 | 250 W | ₹12,999 |
| 16 Port Gigabit PoE Switch 16Gb PoE + 2Gb Uplink · NX-SW-008 | 16 | Gigabit | — | 300 W | ₹12,999 |
| 16 Port Gigabit PoE Switch + 2 SFP 16Gb PoE + 2Gb Uplink + 2 SFP · NX-SW-009 | 16 | Gigabit | 2 | 300 W | ₹12,999 |
| 24 Port Fast Ethernet PoE Switch + 2 SFP 24FE PoE + 2Gb Uplink + 2 SFP · NX-SW-010 | 24 | Fast Ethernet | 2 | 300 W | ₹14,999 |
Dealer net pricing is shared privately — apply for dealership.
How to choose the right PoE switch
1. Count your cameras. Pick a switch with at least that many PoE ports — and a few spare for future cameras.
2. Check the power budget. Most 2MP–5MP IP cameras typically draw 4–8 W. Multiply by your camera count and keep it under the switch's total PoE power (65 W for 4 port, 120–150 W for 8 port, 250–300 W for 16 and 24 port).
3. Fast Ethernet or Gigabit. Fast Ethernet is enough for normal CCTV. Choose Gigabit for 4K cameras, Wi-Fi access points or mixed office use.
4. Need a far building? Choose a model with an SFP slot and connect over fibre. For cameras 100–250 m away on copper, use Extend mode.
5. Mount it safely. Put the switch and NVR in a ventilated, lockable camera rack to protect them from dust, heat and tampering.
Frequently asked questions
What is a PoE switch?
A PoE (Power over Ethernet) switch sends both data and power to IP cameras over a single LAN cable, so each camera does not need its own power adapter. It connects the cameras to your NVR or router.
PoE switch kya hota hai?
PoE switch ek network switch hai jo ek hi LAN cable se camera ko internet/data aur bijli dono deta hai. Har camera ke liye alag adapter aur bijli ki wiring nahi lagani padti.
Which PoE switch should I buy for 4, 8 or 16 cameras?
Choose a switch with at least as many PoE ports as cameras, plus room to grow: 4 port for up to 4 cameras, 8 port for 5–8, 16 port for 9–16 and 24 port for up to 24 cameras.
Fast Ethernet or Gigabit PoE switch — which is better for CCTV?
For normal 2MP–5MP CCTV cameras, Fast Ethernet (100 Mbps per port) is enough and costs less. Choose Gigabit for 4K cameras, Wi-Fi access points or if you also use the switch for office networking.
What is the price of a PoE switch in India?
NEXELTRON PoE switches start at ₹2,299 (4 port) and go up to ₹14,999 (24 port), MRP including GST. Dealers get separate dealer pricing.
What is PoE Watchdog?
PoE Watchdog checks each camera. If one hangs, the switch power-cycles that port automatically so the camera reboots without a site visit.
What is the SFP port used for?
The SFP slot takes a fibre module, so you can link the switch to another building or a far server room over optical fibre — much longer than copper cable allows.
How far can a PoE camera be from the switch?
Standard Ethernet reaches about 100 m. NEXELTRON switches have an Extend mode that reaches up to 250 m at reduced speed, which is enough for CCTV.
